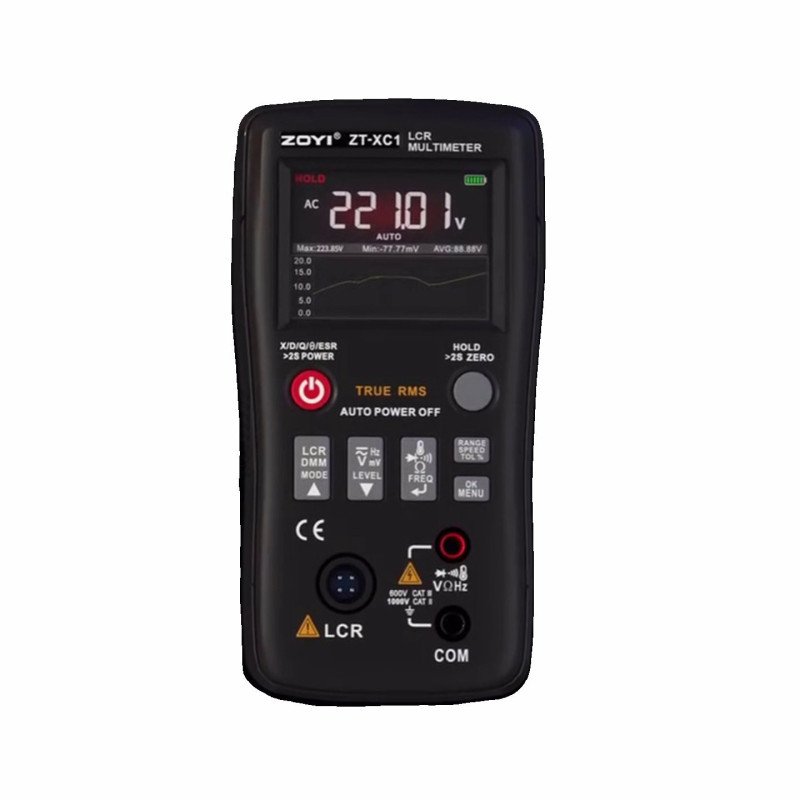

ZOYI ZT-XC1 2-in-1 LCR Meter & Digital Multimeter
The ZOYI ZT-XC1 is a portable, multifunction electronic test instrument combining a 4-wire LCR meter with a 25,000-count True RMS digital multimeter. Designed for electronics engineers, technicians, laboratories and repair workshops, it provides detailed measurement of electronic components together with essential electrical diagnostic functions.
With selectable LCR test frequencies, measurement of ESR and other component parameters, a clear 2.4-inch colour TFT screen and USB-C rechargeable operation, the ZT-XC1 offers a versatile solution for component testing, PCB fault finding, prototyping and electronics development.
Key Features at a Glance
- 2-in-1 LCR meter and digital multimeter
- 25,000-count True RMS multimeter display
- 4-wire Kelvin LCR measurement system
- Inductance, capacitance and resistance testing
- ESR, Q factor, D factor and phase angle measurement
- Selectable 100Hz, 1kHz and 10kHz LCR test frequencies
- 0.3V and 0.6V LCR test signal levels
- 2.4-inch colour TFT screen
- Measurement trend display in DMM mode
- Rechargeable 2,000mAh battery with USB-C charging
- Compact, portable design for electronics testing
Professional 4-Wire LCR Component Testing
The ZT-XC1 incorporates a 4-wire Kelvin LCR measurement system for testing passive electronic components. Unlike basic two-wire resistance or capacitance measurements, four-wire measurement helps reduce the influence of lead and contact resistance, supporting more dependable component analysis.
The LCR function measures three primary electrical properties:
- Inductance (L): analyse coils, inductors, chokes and other inductive components.
- Capacitance (C): measure capacitors and investigate their electrical characteristics.
- Resistance (R): evaluate resistors and resistive components.
The instrument is suitable for examining through-hole components and small surface-mount components using compatible measurement fixtures.
ESR, Q Factor, D Factor & Phase Angle
In addition to basic resistance, capacitance and inductance values, the ZT-XC1 supports the display of secondary LCR parameters.
| Parameter |
Description |
| ESR |
Equivalent Series Resistance, useful for analysing capacitor losses. |
| Q Factor |
Quality factor, used to evaluate the relationship between stored and dissipated energy. |
| D Factor |
Dissipation factor, describing losses in reactive components. |
| Phase Angle |
The phase relationship between test voltage and current. |
These additional parameters are valuable when examining capacitor performance, inductor characteristics and component behaviour beyond basic nominal values.
Selectable 100Hz, 1kHz & 10kHz Test Frequencies
The ZT-XC1 offers three selectable LCR measurement frequencies:
100Hz 1kHz 10kHz
Selecting the appropriate test frequency is important because capacitance, inductance and impedance can vary with frequency. The ZT-XC1 also provides 0.3V and 0.6V test signal levels, allowing measurement conditions to be adjusted for supported applications.
These options make the XC1 useful for general component evaluation, electronics repairs, engineering education and laboratory work.
25,000-Count True RMS Digital Multimeter
The integrated digital multimeter adds useful electrical testing functions without requiring a completely separate instrument for routine diagnostics.
Its 25,000-count display allows detailed numerical readings, while True RMS technology supports AC voltage measurement where applicable.
The multimeter mode provides electrical measurement functions including:
- AC voltage measurement
- DC voltage measurement
- Resistance measurement
- Continuity testing
- Diode testing
- Temperature measurement using a compatible probe
- Measurement statistics and trend display
Important: The ZT-XC1 is primarily an LCR component tester with additional digital multimeter functions. It should not be considered a replacement for a conventional multimeter when direct AC/DC current measurement is required.
2.4-Inch Colour TFT Display & Measurement Trends
A 2.4-inch TFT colour display presents measurement results clearly, including numerical readings and supported graphical information.
In multimeter mode, the graphical measurement trend helps users observe how readings change over time. This can be helpful when investigating fluctuating voltages, checking component behaviour or observing measurements during fault diagnosis.
The interface also supports measurement statistics such as maximum, minimum and average readings.
LCR Testing for SMD & Through-Hole Components
Component testing often involves different package sizes, from conventional leaded capacitors and resistors to small surface-mount devices.
The ZT-XC1's four-contact LCR interface supports suitable component-testing adapters, allowing electronic components to be measured without needing a large laboratory instrument.
This is particularly useful for:
- SMD resistor and capacitor evaluation
- Through-hole capacitor testing
- Inductor and coil measurement
- Electronics component identification
- PCB repair and troubleshooting
- Component selection and comparison
For specialised surface-mount measurement tools, explore our SMD testers and LCR tweezers.
Rechargeable Battery & USB-C Charging
The ZT-XC1 uses a built-in 2,000mAh rechargeable lithium battery and supports USB-C charging. The compact handheld design makes the instrument convenient for workshop benches, development laboratories, repair desks and field diagnostics.
The rechargeable design eliminates the need to routinely replace disposable batteries, while the colour display makes it easy to read measurements in different working environments.
Technical Specifications
| Specification |
ZOYI ZT-XC1 |
| Model |
ZT-XC1 |
| Instrument Type |
LCR Meter + Digital Multimeter |
| Display |
2.4-inch Colour TFT |
| DMM Display Counts |
25,000 |
| True RMS |
Yes |
| LCR Measurement |
Inductance, Capacitance, Resistance |
| LCR Connection |
4-Wire Kelvin |
| Test Frequencies |
100Hz / 1kHz / 10kHz |
| LCR Signal Levels |
0.3V / 0.6V |
| Secondary Parameters |
ESR / D / Q / Phase Angle |
| DMM Functions |
AC/DC Voltage, Resistance, Continuity, Diode, Temperature |
| Measurement Trends |
Graphical Display in DMM Mode |
| Battery |
2,000mAh Rechargeable Lithium |
| Charging |
USB-C |
| Dimensions |
Approx. 149 x 76 x 33.5mm |
Note: Measurement ranges, accuracy limits and safety ratings must be checked against the official ZT-XC1 user manual before use.
Applications for Electronics Repair & Engineering
The ZT-XC1 is designed for users who need to measure the properties of passive electronic components and perform general electrical diagnostics in the same instrument.
- Electronics repair: inspect resistors, capacitors and inductors during fault finding.
- PCB diagnostics: evaluate components removed from suspect circuit boards.
- Engineering development: compare component values during circuit design.
- Laboratory use: perform routine LCR and voltage measurements.
- Education: study component properties and basic AC/DC electrical principles.
- Quality checks: compare passive component measurements against specified values.
Safe Component Testing
Always disconnect power and fully discharge capacitors before carrying out LCR measurements. Do not apply an external voltage to the LCR measurement contacts. Follow the official manual for permitted measurement ranges, input connections and safety limitations.
Frequently Asked Questions
What is the ZOYI ZT-XC1?
The ZT-XC1 is a combined LCR meter and digital multimeter for measuring electronic components and performing selected electrical measurements.
Can the ZT-XC1 measure ESR?
Yes. The LCR section supports ESR measurement, allowing users to examine the equivalent series resistance of suitable components, including capacitors.
Which LCR test frequencies are available?
The ZT-XC1 supports selectable 100Hz, 1kHz and 10kHz LCR test frequencies.
Can the ZT-XC1 test inductors?
Yes. It measures inductance as well as capacitance and resistance, making it suitable for testing coils, inductors and other passive electronic components.
Can the ZT-XC1 measure current?
Independent testing reports that the ZT-XC1 does not provide conventional AC/DC current measurement. Choose a dedicated digital multimeter with current measurement if this function is required.
Can it measure SMD components?
Yes. Suitable LCR fixtures can be used to test small surface-mount resistors, capacitors and other supported components.
Is the ZT-XC1 rechargeable?
Yes. It has a built-in rechargeable lithium battery and supports USB-C charging.
What is the difference between an LCR meter and a digital multimeter?
A digital multimeter is primarily used for electrical measurements such as voltage, resistance and, on supported models, current. An LCR meter focuses on the electrical characteristics of passive components, including inductance, capacitance, resistance and related parameters.
Explore More ZOYI Test Equipment
The ZT-XC1 provides a combined approach to component and electrical testing. For additional options, explore:
- LCR Meters – instruments for capacitance, inductance, resistance and ESR analysis.
- Component Testers – specialist electronic component diagnostic tools.
- Digital Multimeters – instruments for electrical voltage, current and resistance testing, depending on model.
- SMD Testers – compact tools for surface-mount component measurements.
Buy the ZOYI ZT-XC1 from ZOYI UK
Order genuine ZOYI electronics test equipment from ZOYI UK, with UK customer support, VAT-inclusive pricing and UK delivery options.
The ZT-XC1 combines detailed LCR component analysis with practical multimeter functionality, making it a useful addition to an electronics repair bench, engineering laboratory or development workspace.
