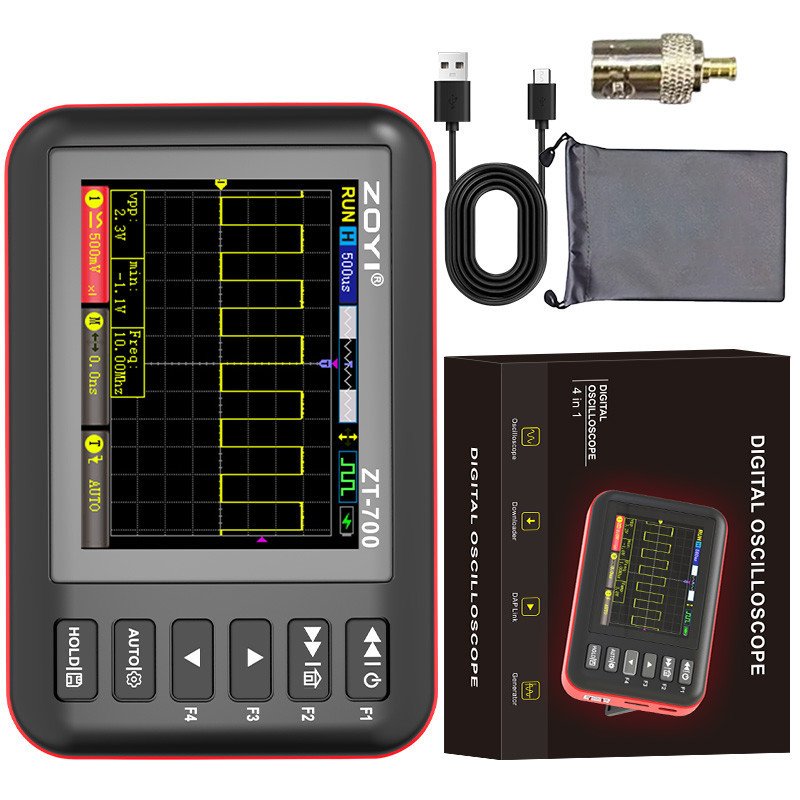

ZOYI ZT-700 4-in-1 Multifunction Oscilloscope
A compact development and diagnostic tool combining a 10MHz digital oscilloscope, signal generator, offline downloader and DAP emulator.
Four Useful Functions in One Portable Device
The ZOYI ZT-700 is a multifunction handheld instrument designed for electronics repair, circuit diagnostics, embedded development, technical education and DIY projects.
It combines waveform viewing, signal generation and compatible programming or debugging functions in one easy-to-carry device, making it a practical choice for engineers, technicians, developers, students and electronics hobbyists.
10MHz Oscilloscope
Observe compatible electrical signals, waveform shape, timing and circuit behaviour.
Signal Generator
Generate 22 waveform types with output frequencies up to 100kHz.
Offline Downloader
Transfer prepared firmware to supported development targets without a continuous computer connection.
DAP Emulator
Use the device as a compatible programming and debugging interface for supported development systems.
A practical development workflow: Generate a test signal, observe the circuit response with the oscilloscope and use the compatible downloader or DAP functions during embedded development and troubleshooting.
10MHz Digital Oscilloscope
Oscilloscope mode provides a visual view of changing electrical signals, helping users investigate waveform shape, pulse timing, noise and irregular circuit behaviour that cannot be understood from a numerical measurement alone.
The ZT-700 is suitable for examining compatible PWM signals, sensor outputs, microcontroller circuits, audio signals, power-supply behaviour and other low-voltage electronics within the instrument’s specified input limits.
Built-In Signal Generator
The integrated signal generator supports 22 waveform types with output frequencies up to 100kHz. This allows users to inject test signals into compatible circuits and observe their response during design, repair and educational experiments.
Key Specifications
| Specification |
Details |
| Model |
ZOYI ZT-700 |
| Instrument Type |
4-in-1 multifunction oscilloscope and development tool |
| Oscilloscope Bandwidth |
10MHz |
| Signal Generator |
22 waveform types |
| Maximum Generator Frequency |
Up to 100kHz |
| Display |
2.8-inch IPS colour screen |
| Development Functions |
Offline downloader and DAP emulator |
| Connectivity and Storage |
USB and TF card support |
Clear Display and Portable Operation
The 2.8-inch IPS colour screen provides a clear view of waveforms and operating information. Simple button controls, automatic functions and waveform hold support convenient operation during workshop, laboratory and field testing.
Recommended Applications
- Electronics repair and circuit troubleshooting
- PWM, sensor and signal inspection
- Embedded development and compatible programming work
- Signal-generator experiments and circuit-response testing
- Education, training and laboratory demonstrations
- DIY electronics and microcontroller projects
Compatibility and safety guidance: Downloader and DAP compatibility depends on the target device, connection method and supported firmware. Confirm compatibility before programming. Always observe the oscilloscope input and signal-generator output limits, use correctly rated accessories and connect the reference lead only to an appropriate circuit point.
Available from ZOYI UK
Supplied from UK stock with fast dispatch and a full VAT invoice, the ZOYI ZT-700 combines portable waveform analysis, signal generation and compatible embedded-development functions in one compact instrument.
