ZOYI ZT-703S Oscilloscope Multimeter
A professional 3-in-1 handheld diagnostic instrument combining a 50MHz digital oscilloscope, 25,000-count True RMS multimeter and signal generator. Designed for field engineers, automotive diagnostics, electronics repair and workshop troubleshooting.
Three Professional Test Tools in One
The ZOYI ZT-703S combines waveform capture, accurate electrical measurement and signal output functions in one compact and portable instrument. It allows technicians to examine signals, measure circuit values and perform practical troubleshooting without carrying several separate devices.
Its 3.5-inch IPS colour display, rechargeable 6000mAh battery and USB-C charging make it suitable for workbench testing, mobile repairs and on-site diagnostic work.

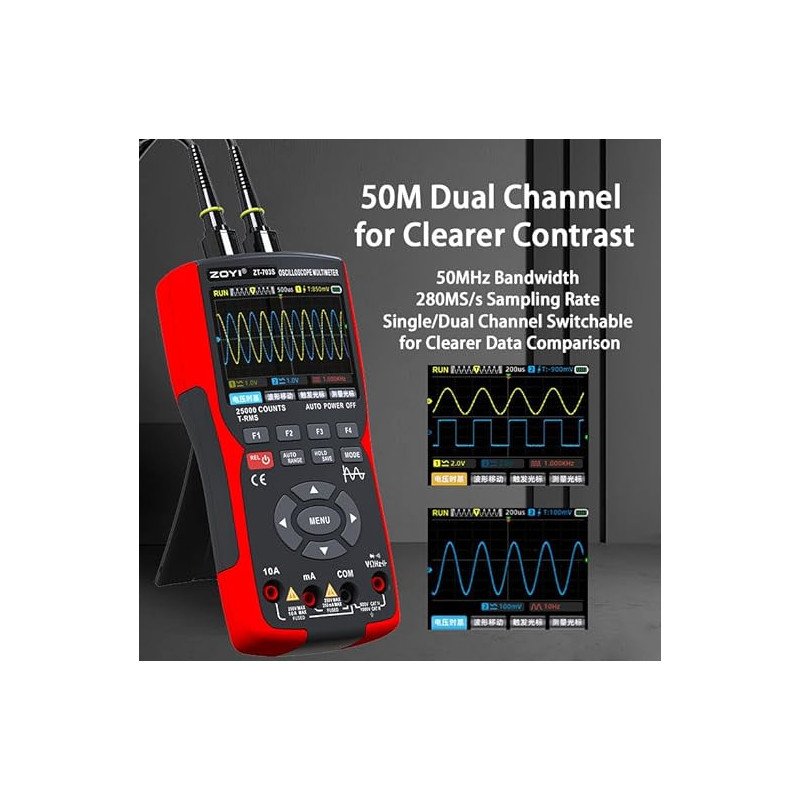

50MHz Oscilloscope Capture and examine waveforms with a sampling rate of up to 280MSa/s and Auto, Normal and Single trigger modes.
True RMS Multimeter Perform electrical measurements with a clear 25,000-count digital multimeter display.
Signal Generator Generate waveform output for circuit testing, signal tracing and electronics diagnostics.
Portable diagnostic solution: The ZT-703S allows engineers and technicians to view waveforms and take multimeter measurements using one handheld instrument, making it practical for troubleshooting equipment in locations where a full-size bench oscilloscope is unavailable.
Key Features
- ✓ 50MHz oscilloscope bandwidth with up to 280MSa/s sampling
- ✓ 25,000-count True RMS multimeter
- ✓ Clear 3.5-inch IPS colour display
- ✓ Built-in signal generator for circuit testing
- ✓ Auto, Normal and Single oscilloscope trigger modes
- ✓ Waveform and screenshot saving support
- ✓ AC/DC voltage, AC/DC current, resistance and capacitance measurement
- ✓ Frequency, duty-cycle and K-type temperature measurement
- ✓ 6000mAh rechargeable lithium battery with USB-C charging
- ✓ Data hold, automatic power-off and firmware upgrade support
Technical Specifications
| Oscilloscope Bandwidth |
50MHz |
| Sampling Rate |
280MSa/s |
| Multimeter Display Count |
25,000 counts True RMS |
| Display |
3.5-inch IPS colour display |
| Voltage Range |
Up to 1000V DC / 750V AC True RMS |
| Current Range |
Up to 10A AC/DC |
| Resistance Range |
Up to 60MΩ |
| Capacitance Range |
Up to 100mF |
| Frequency Measurement |
Up to 60MHz |
| Duty Cycle |
0–99% |
| Temperature Measurement |
K-type temperature measurement supported |
| Trigger Modes |
Auto / Normal / Single |
| Battery Capacity |
6000mAh rechargeable lithium battery |
| Charging Connection |
USB-C |
Ideal Applications
Electronics repair and PCB diagnostics
Automotive electrical troubleshooting
Field engineering and maintenance
Circuit development and testing
Workshop equipment diagnostics
Education and electronics laboratories

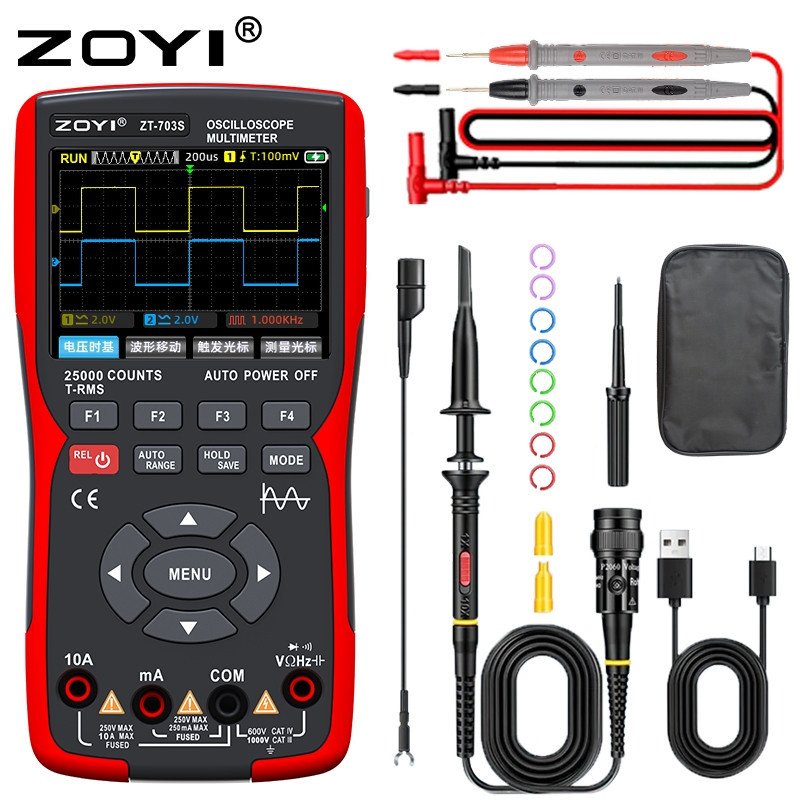

What’s Included
- • ZOYI ZT-703S oscilloscope multimeter
- • Oscilloscope probe(s)
- • Multimeter test leads
- • USB-C charging cable
- • User manual
Package note: Oscilloscope probe quantity depends on the selected package. Please check the chosen kit option before ordering.
UK Delivery & ZOYI Support
Supplied from UK stock with fast dispatch and tracked delivery options. A VAT invoice and 12-month ZOYI UK warranty are included.
