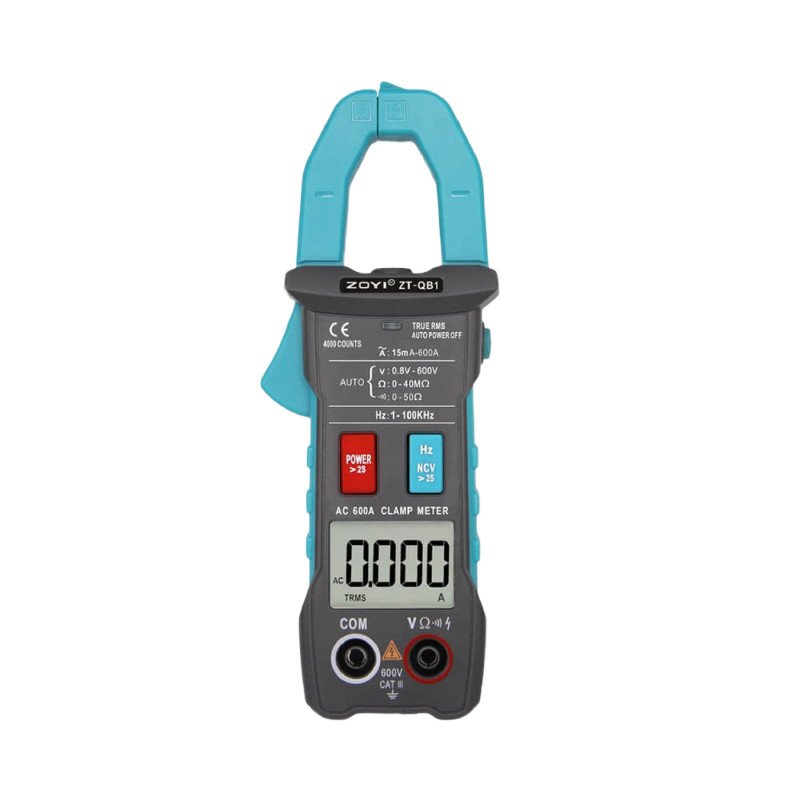

ZOYI ZT-QB1 Compact True RMS Digital Clamp Meter
A lightweight 4000-count clamp meter with True RMS measurement and NCV detection for quick current checks, electrical maintenance and everyday troubleshooting.
Quick Current Testing Without Disconnecting Wires
The ZOYI ZT-QB1 is a compact and user-friendly digital clamp meter designed for electricians, technicians, workshop users and experienced DIY users who need convenient electrical measurements in a portable instrument.
Its clamp enables AC current measurement without opening the circuit or disconnecting the conductor. This makes it useful for checking electrical loads, appliances, lighting circuits, distribution boards and other installations where efficient current measurement is required.
True RMS measurement: True RMS technology supports dependable readings when testing non-linear or distorted electrical signals produced by many modern appliances, electronic power supplies, lighting systems and controlled loads.
Measurement Capabilities
AC Current
Measure current through the clamp without breaking the circuit.
AC/DC Voltage
Check voltage in electrical systems, appliances and electronic circuits.
Resistance
Measure resistors, wiring paths and other resistive components.
Continuity Buzzer
Locate broken connections, open circuits and damaged cables.
Diode Testing
Inspect diodes and semiconductor junctions during fault finding.
NCV Detection
Quickly detect the possible presence of nearby AC voltage.
4000-Count Backlit Display
The clear 4000-count LCD provides easy-to-read measurements in workshops, lofts, electrical cabinets and other dim working environments. Its straightforward controls support quick operation during routine testing and fault diagnosis.
The lightweight, ergonomic body is comfortable to handle and easy to carry in a toolbox or service bag, making the ZT-QB1 suitable for bench work, property maintenance and mobile callouts.
Important clamp and NCV guidance: For current measurement, place the clamp around one conductor only. Clamping around both live and neutral conductors together can cancel the magnetic fields and produce an incorrect reading. NCV is an initial detection aid and must not be used as the sole method of proving that a circuit is safe or isolated.
Typical Applications
- Household electrical testing and maintenance
- Appliance and lighting-circuit checks
- AC current measurement without disconnecting conductors
- Distribution-board and electrical-panel diagnostics
- Workshop and mobile field testing
- Cable, resistance and continuity checks
- Initial live-wire detection using the NCV function
Available from ZOYI UK
Delivered from UK stock with fast dispatch and a full VAT invoice, the ZOYI ZT-QB1 offers a convenient combination of True RMS measurement, clamp-based AC current testing and NCV detection in a compact everyday instrument.
