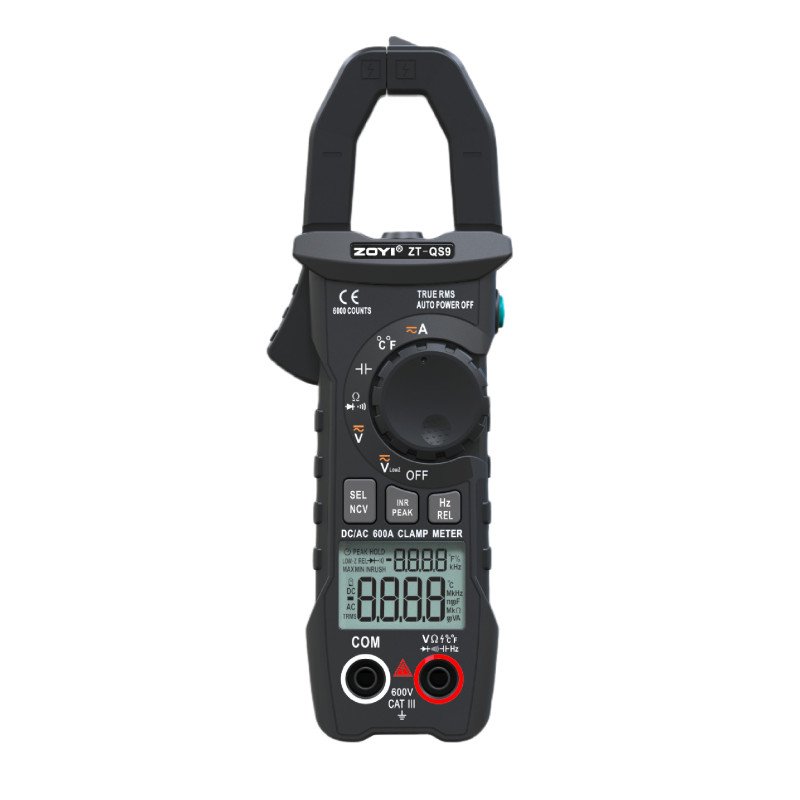

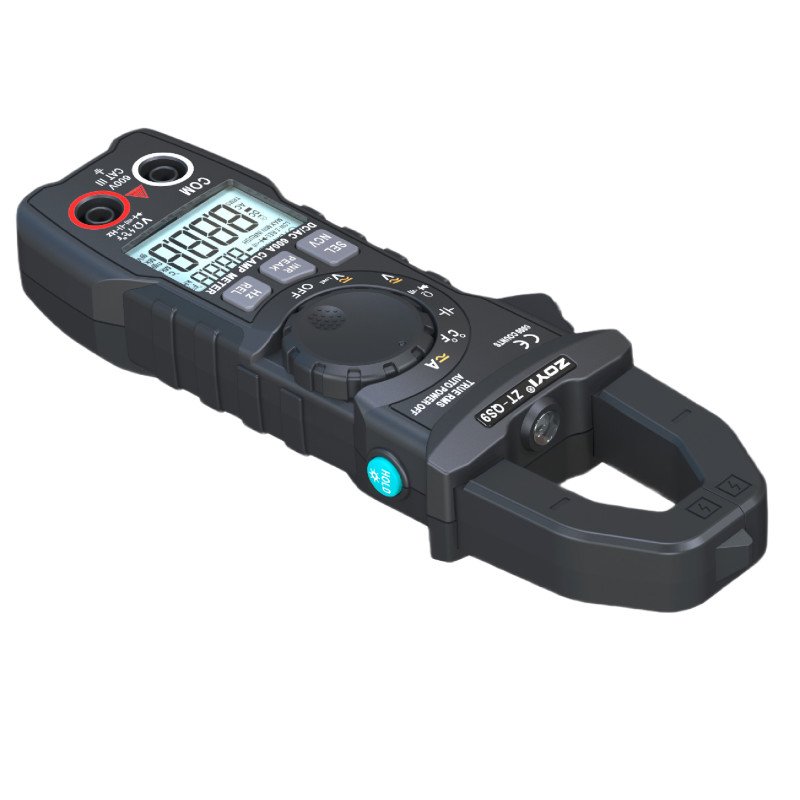

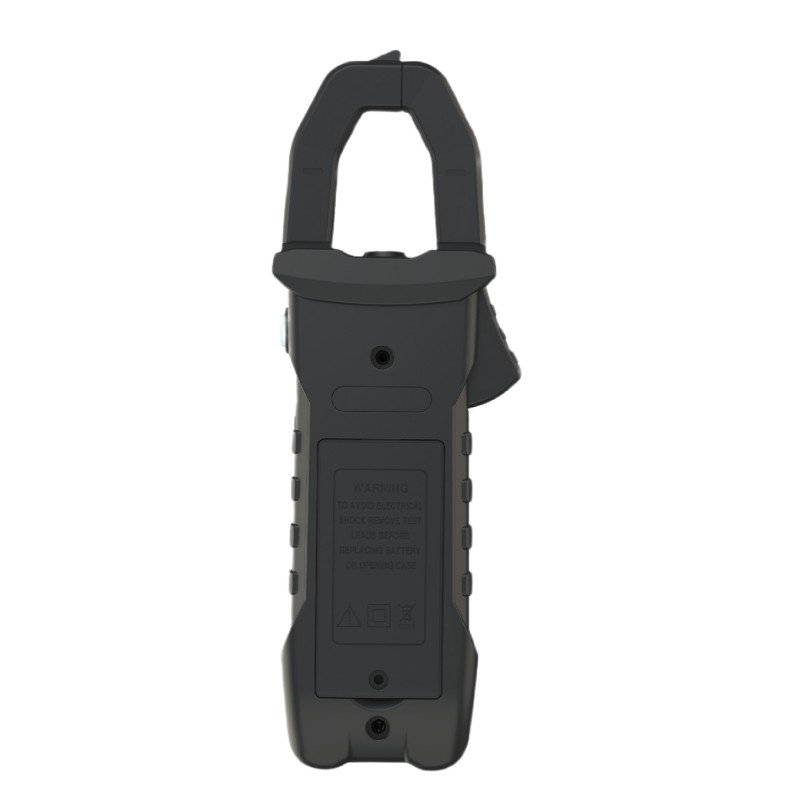

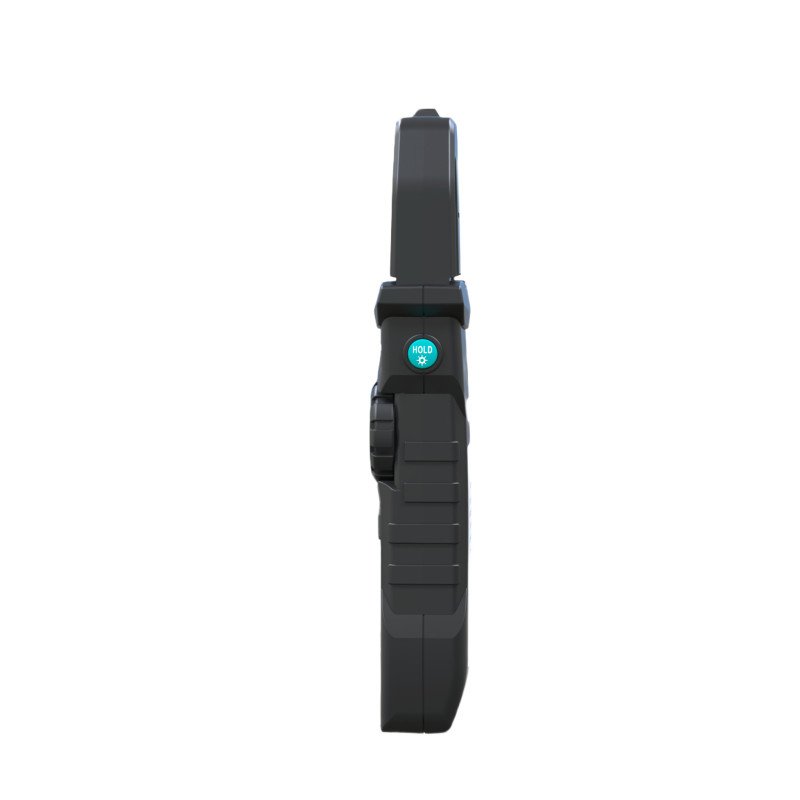

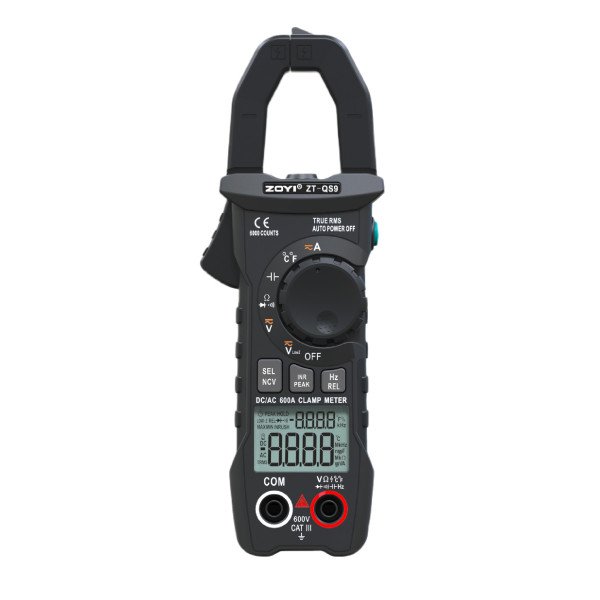

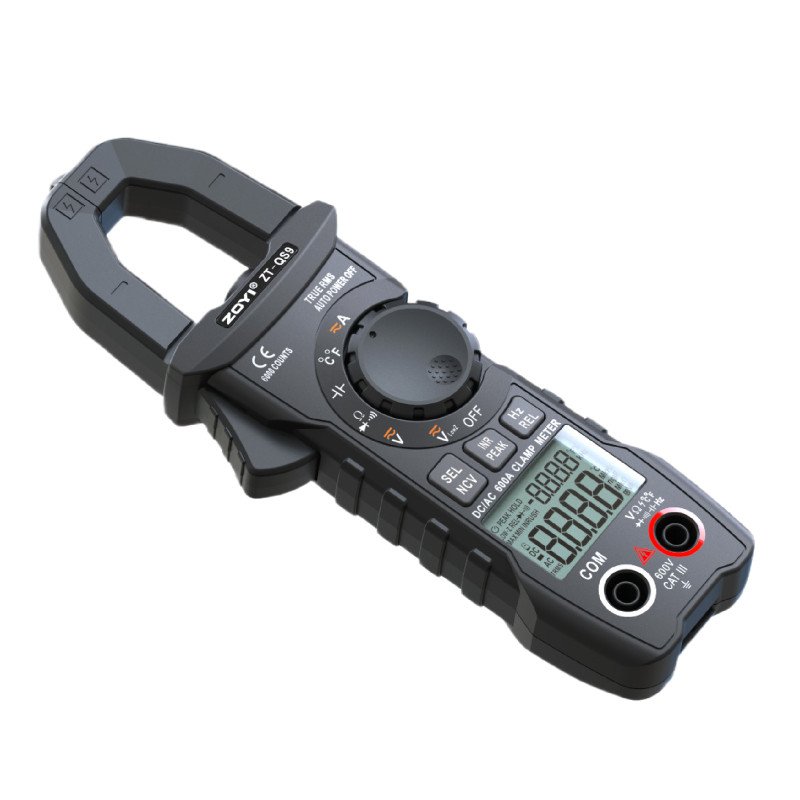

ZOYI ZT-QS9 Professional True RMS Clamp Meter
A professional 6000-count AC clamp meter with True RMS accuracy, inrush-current capture, peak hold and NCV detection. Designed for electricians, HVAC specialists, maintenance engineers and workshop technicians.
Non-Intrusive Current Measurement
The ZOYI ZT-QS9 allows technicians to measure AC current by clamping around a conductor without disconnecting the circuit or inserting the meter in series.
Its ergonomic clamp jaw and clear backlit display support efficient current checks in consumer units, plant rooms, industrial cabinets, ceiling spaces and other demanding work areas.
Inrush-Current Capture Records start-up surge current from motors, pumps, compressors, HVAC units and power tools.
True RMS Accuracy Provides dependable readings on conventional, distorted and electrically noisy loads.
Peak and Data Hold Capture peak values or freeze a measurement for convenient viewing and recording.
6000-Count Display Clearly presents measurements with a bright backlight for dim work areas.
Why measure inrush current? Motors, compressors and other inductive equipment can draw a short burst of high current during start-up. Capturing this surge can help diagnose nuisance tripping, difficult starting, overloaded circuits and equipment-performance problems.
Core Measurement Functions
- ✓ AC current measurement using the clamp
- ✓ AC and DC voltage measurement
- ✓ Resistance measurement
- ✓ Audible continuity testing
- ✓ Diode testing
- ✓ Frequency measurement
- ✓ NCV non-contact voltage detection
- ✓ Inrush, peak hold and data hold functions
Designed for Motors and HVAC Equipment
True RMS measurement supports reliable current and voltage readings on compressors, variable-speed equipment, motor loads and modern electronically controlled systems.
The inrush function provides additional diagnostic information during equipment start-up, making the ZT-QS9 particularly useful for investigating motors, pumps, air-conditioning systems, refrigeration equipment and power tools.
Recommended Applications
Electrical installation and maintenance
HVAC and refrigeration diagnostics
Motor, pump and compressor testing
Workshop and plant-room maintenance
Consumer-unit and circuit checks
General electrical troubleshooting
Rugged and Practical Construction
The durable casing and ergonomic clamp design are suitable for regular field and workshop use. The backlit 6000-count display remains easy to read in dim environments, supporting efficient testing in challenging locations.
Correct Clamp Use Clamp around one insulated conductor only. Clamping around a complete cable containing both live and neutral conductors may produce a zero or incorrect reading. NCV is a preliminary indication only and must not be used as the sole method of proving a circuit is dead. Live electrical testing should only be performed by a competent person.
Available from ZOYI UK
Supplied from UK stock with fast dispatch options and a full VAT invoice included. The ZOYI ZT-QS9 is a dependable professional clamp meter for current measurement, inrush testing and everyday electrical diagnostics.
