Introduction: Can You Use a Multimeter on Household Mains?
Yes — you can safely use a digital multimeter to test household mains (230V AC in the UK) ✔️ But only if you follow the correct safety rules and use a properly rated meter. Electrical mains are dangerous. One mistake can damage your meter or cause serious injury. ⚠️
This guide explains exactly how to use your multimeter safely on mains voltage and what to avoid at all costs.
⚡ What You Can Measure on Mains Using a Multimeter
Your DMM can measure:
- ? AC Voltage (V~)
- ? Earth-to-neutral voltage
- ? Socket output
- ? Continuity (ONLY when power is OFF)
- ? Resistance (ONLY when power is OFF)
Multimeters can test mains safely — as long as you understand the risks and use the correct mode.
Multimeter CAT Safety Ratings (Very Important!)
Before testing mains, check the **CAT rating** of your multimeter:
- CAT II: Appliances, small loads
- CAT III: Distribution boards, outlets, fixed wiring
- CAT IV: Service entrances, utility lines, outdoor cables
For household mains sockets, you need at least CAT III 600V or higher. A cheap unbranded meter is NOT safe for mains. ?

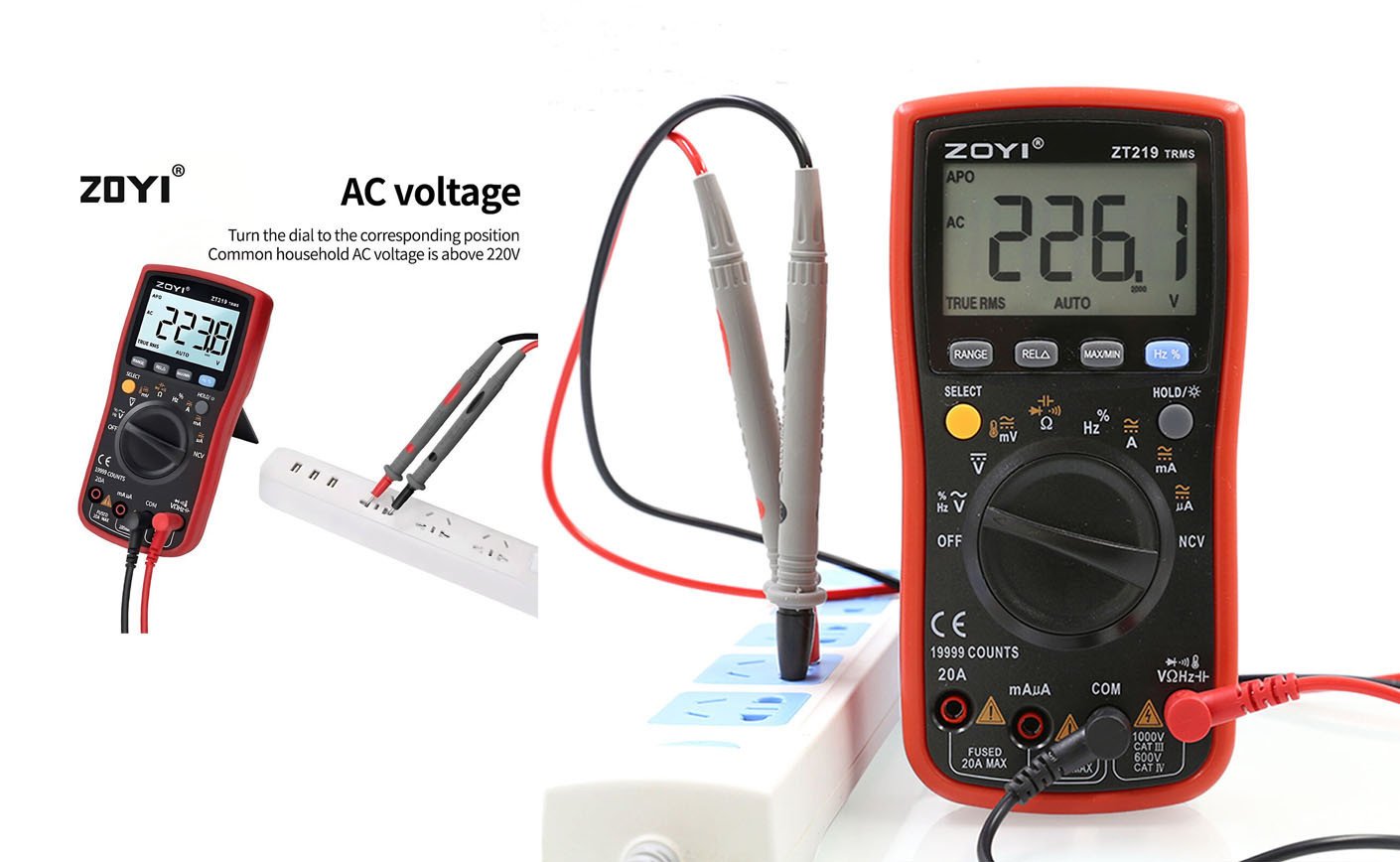

How to Measure Mains Voltage Safely (Step-by-Step)
Step 1 — Set Meter to AC Voltage (V~)
Never use DC mode or resistance mode for mains measurement.
Step 2 — Insert Probes Correctly
- Black lead → COM
- Red lead → V/Ω
Step 3 — Hold Probes by the Insulated Part Only
Keep fingers behind the finger guards to avoid accidental contact. ✋
Step 4 — Insert Probes into the Live & Neutral Terminals
You should see something around 220V–240V AC.
Step 5 — Remove Probes Carefully
Do not pull the meter by the leads — hold the insulated part of the probes.
⚠️ Critical Safety Rules (Must Follow)
- ❗ Never touch probe tips during testing.
- ❗ Do not use continuity or resistance mode on live circuits.
- ❗ Do not measure current directly on mains sockets.
- ❗ Always check leads for cracks or exposed metal.
- ❗ Do not switch modes while probes are in a live socket.
- ? Always use a CAT-rated meter.
Following these rules prevents electrical shock and damage to the device.
Why You Should NEVER Measure Current Directly on a Wall Socket
Many beginners mistakenly try to measure current by placing the probes into live and neutral. This creates a direct short circuit. ⚠️?
Results:
- Blown fuse inside the meter
- Damaged probes
- Sparks / tripped breakers
- Serious injury risk
You should measure mains current only with a clamp meter, never with probes.
What About Testing Continuity on Sockets?
Continuity mode uses internal low-voltage signals. NEVER use continuity mode on a live socket — you can destroy your multimeter instantly.
Continuity is only for:
- Switches
- Cable tests
- Fuses
- Components
Tools Safer Than a Multimeter for Socket Wiring Checks
If you want to test correct wiring of a socket, these tools are safer:
- ✔ Smart socket tester
- ✔ Voltage tester pen
- ✔ RCD tester
These devices are designed for fast and safe socket analysis.
Final Thoughts
Using a multimeter on household mains is safe — but only when you follow proper procedures. ✔ A reliable CAT-rated meter, correct settings and proper probe handling ensure your tests are accurate and risk-free.
Remember: Voltage → OK to measure.
Current → NEVER measure directly on a wall socket.
Continuity/Resistance → Only on dead circuits. ⚠️
Read our next guide to understand what “OL” means on a multimeter and how to fix measurement errors. ??
