Continuity vs Resistance — What’s the Difference & When Should You Use Each?
Posted by      12/01/2025 14:04:55    Comments 0
Continuity vs Resistance — What’s the Difference & When Should You Use Each?

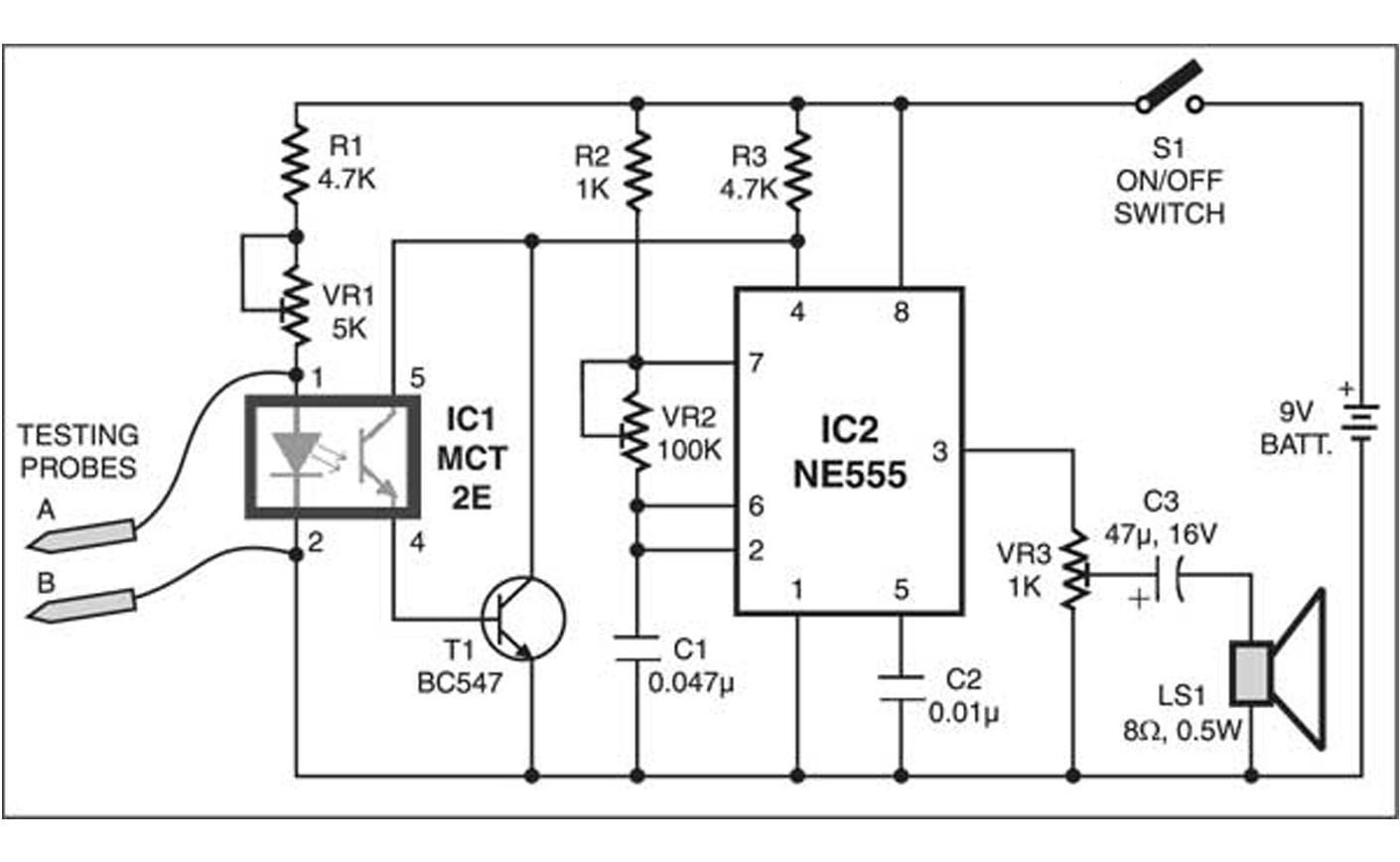

Continuity vs Resistance: What Is the Difference on a Multimeter?

Many beginners, and even experienced users, get confused about the difference between continuity testing and resistance measurement. Both tests check electrical paths, but they are designed for different purposes and give different types of information.

Introduction: Continuity vs Resistance — Why It Confuses Many Users

Both continuity mode and resistance mode are common functions on a digital multimeter. They both involve checking how electricity can pass through a wire, fuse, switch, track or component.

However, the two modes answer different questions:

Continuity mode: Is there a complete electrical path?

Resistance mode: How much resistance is in that path?

This guide explains the difference clearly so you can choose the right multimeter mode for the job.

What Is Continuity Mode?

Continuity mode checks whether there is a complete electrical path between two points. If the path is complete and the resistance is low enough, the meter usually beeps.

Continuity tells you yes or no:

✓ The circuit is connected → meter beeps

⚠ The circuit is broken → no beep

Continuity mode is perfect for:

• Testing fuses

• Checking cables and extension leads

• Testing switches and buttons

• Tracing wiring faults

• Checking PCB tracks

It is fast, simple and ideal for basic electrical checks.

For more help with beep testing, read our guide: Why Is My Multimeter Not Beeping?

What Is Resistance Mode?

Resistance mode, marked with Ω, measures how much a component, wire or connection opposes the flow of electricity. It gives a numerical value in ohms.

Resistance tells you how much resistance is present:

0–2Ω: Very low resistance, usually a good connection

5–50Ω: Expected resistance for some components

100Ω+: May indicate a weak connection or partial fault, depending on the circuit

OL / ∞: Open circuit or no continuity

Resistance mode is ideal for:

• Testing resistors

• Checking heating elements

• Diagnosing sensors such as NTC, PTC and thermistors

• Measuring coil and motor windings

• Testing long cable runs

You can learn more about electrical resistance from this external reference.

Continuity vs Resistance — Side-by-Side Comparison

Result Type Continuity mode: Beep or no beep.
Resistance mode: Displays a resistance value in ohms.
Main Purpose Continuity mode: Checks if a circuit is complete.
Resistance mode: Checks how strong or weak the connection is.
Information Level Continuity mode: Simple pass/fail test.
Resistance mode: More detailed measurement.
Best Used For Continuity mode: Wiring, switches, fuses and PCB tracks.
Resistance mode: Resistors, sensors, coils, motors and components.
Difficulty Continuity mode: Fast and beginner-friendly.
Resistance mode: More technical and more accurate for diagnosis.

When Should You Use Each Function?

Use Continuity Mode When:

✓ You want a quick connection check

✓ You are testing a fuse

✓ You are checking if a wire is broken

✓ You are diagnosing a switch or relay

✓ You are tracing PCB tracks

Use Resistance Mode When:

✓ You need a precise ohm value

✓ You are testing a resistor or component

✓ You suspect a partial connection fault

✓ You are testing motor windings

✓ You are checking sensor ratings

For more advanced component testing, an LCR meter such as the ZOYI ZT-DQ02 can measure resistance, capacitance, inductance, ESR and impedance with more detail.

Safety Rules for Both Modes

Both continuity and resistance tests must be done on a non-powered circuit. Never perform these tests while the circuit is live.

⚠ Turn off power first

⚠ Discharge capacitors before testing

⚠ Check your probe placement

⚠ Avoid touching metal probe tips during measurement

For mains testing safety, read this related guide: Can You Use a Multimeter on Household Mains?

Common Mistakes Users Make

⚠ Using continuity mode on live circuits

⚠ Expecting the meter to beep for high-resistance paths

⚠ Interpreting OL as a fault when it can be normal for open circuits

⚠ Using continuity mode instead of resistance mode for components

⚠ Forgetting that continuity is yes/no, not detailed data

If your meter shows OL, read this guide: What Does OL Mean on a Multimeter?

Recommended ZOYI Tools

ZOYI Digital Multimeters For continuity, resistance, voltage, current, diode testing and general electrical troubleshooting. View multimeters.
ZOYI ZT-DQ02 LCR Meter For more detailed component testing, including resistance, capacitance, inductance, ESR, impedance and battery internal resistance. View ZT-DQ02.
ZOYI Smart LCR Tweezers For small SMD resistors, capacitors, inductors and PCB component checks. View SMD testers.

Final Thoughts

Continuity and resistance tests may seem similar, but they serve different purposes. Continuity gives you a quick answer to the question: does it connect? Resistance gives you a detailed measurement of how much opposition exists in the circuit.

Mastering both functions will make your multimeter far more useful and help you diagnose electrical issues with more confidence.

Continue to our next guide to learn how to safely work with live circuits and avoid common multimeter mistakes: Can You Use a Multimeter on Household Mains?

Need a Multimeter for Continuity and Resistance Testing?

Explore ZOYI digital multimeters and component testers for continuity checks, resistance measurement, fuse testing, PCB repair and electronics diagnostics.

Shop ZOYI Multimeters
