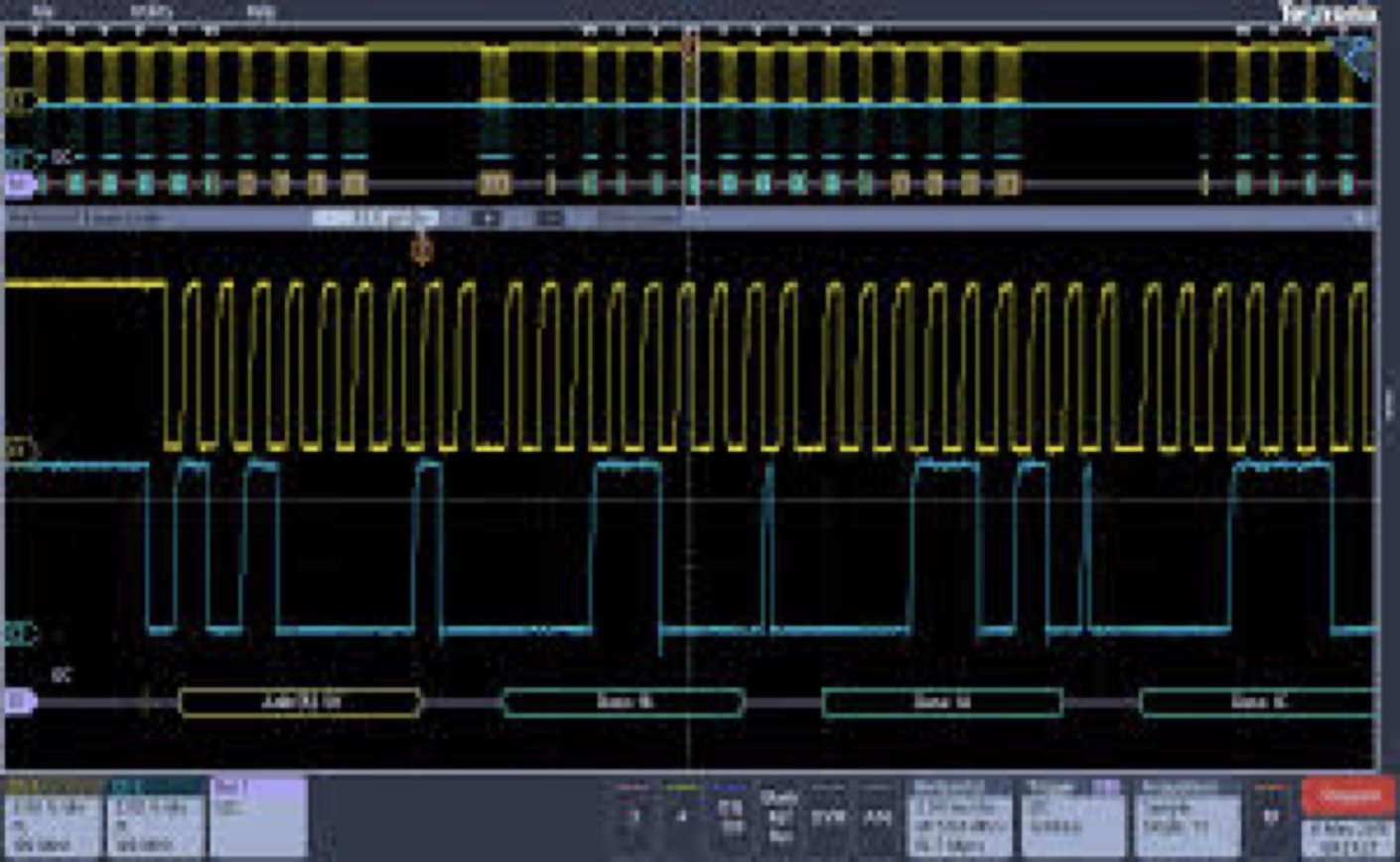

How to Read Waveforms on an Oscilloscope Multimeter — Beginner Guide

Introduction: Why Waveform Reading Matters

A normal digital multimeter gives you numbers such as voltage, resistance or current. An oscilloscope multimeter goes further by showing how the signal changes over time.

This is very useful when testing sensors, PWM controls, inverters, power supplies, automotive signals, HVAC systems and electronic circuits.

This guide explains how to read waveforms step by step using any modern oscilloscope multimeter.

The Basics: What Is a Waveform?

A waveform is a visual representation of how voltage changes over time. Every electrical system, including AC mains, motors, sensors and electronic circuits, creates a unique waveform.

You will commonly see:

For background, you can also read about oscilloscopes and how they display electrical signals.

Key Waveform Terms You Must Know

1. Amplitude: Voltage Level

Amplitude is the height of the waveform. It shows how high or low the voltage goes.

2. Frequency: Hz

Frequency means how many times the waveform pattern repeats per second. It is measured in hertz, shown as Hz.

You can read more about frequency here.

3. Duty Cycle: %

Duty cycle is mainly used for PWM signals. It shows the percentage of time the signal is ON compared with OFF.

For example, a fan or motor controller may use a higher duty cycle to increase speed. LED drivers may use PWM duty cycle to control brightness.

For more detail, see this external reference on Pulse Width Modulation.

4. Noise and Ripple

Noise and ripple are small unwanted spikes, wiggles or disturbances on the waveform.

5. Rise and Fall Time

Rise time shows how fast a signal moves from low to high. Fall time shows how fast it moves from high to low.

This is important when testing digital circuits, MOSFET gate signals, switching power supplies and high-speed control signals.

Step-by-Step: How to Measure a Waveform

Step 1: Select Oscilloscope Mode

Turn the dial or press the SCOPE button on your oscilloscope multimeter.

On models such as the ZOYI ZT-703S, oscilloscope mode allows you to view waveforms directly on the display.

Step 2: Connect Probes

Use the correct oscilloscope probes or suitable test leads for the signal you are measuring.

Step 3: Set Voltage Range

Start with a higher voltage range to avoid overloading the meter. Once the signal is visible and safe, adjust the range to make the waveform easier to read.

Step 4: Set Time Base

The time base controls how much of the signal you see across the screen.

Step 5: Stabilise the Waveform Using Trigger

The trigger function locks the waveform so it does not move across the screen. If the waveform is rolling or unstable, adjust the trigger level or trigger mode.

Step 6: Read the Signal

Once the waveform is stable, check the key details:

Examples of Common Waveforms

1. AC Mains: Sine Wave

UK mains electricity should normally appear as a smooth, stable sine wave at 50Hz. Ripple, clipping or distortion may indicate power quality issues or inverter problems.

2. PWM Fan Control: Square Wave

A PWM fan control signal usually appears as a square wave. A higher duty cycle normally means faster fan speed.

An oscilloscope multimeter helps diagnose fan control faults by showing whether the PWM signal is present, stable and changing correctly.

3. Automotive Sensor Signal

Crankshaft and camshaft sensors should produce clean, repeatable waveforms. Missing spikes, irregular shapes or unstable patterns may indicate sensor failure, wiring faults or timing issues.

4. Power Supply Ripple Test

DC power supplies should look mostly flat with minimal ripple. If the waveform shows large ripple, spikes or noise, the fault may be caused by bad capacitors, poor filtering or a failing power supply.

For capacitor and ESR-related testing, you may also find this useful: How to Test Capacitance, Resistance and LCR Components.

Diagnosing Problems Using Waveform Shapes

Safety Tips for Using Oscilloscope Multimeters

For general electrical safety background, you can read about measurement categories, often shown as CAT II, CAT III or CAT IV on test equipment.

Why Oscilloscope Multimeters Are Better Than Normal DMMs

An oscilloscope multimeter gives more diagnostic information than a normal digital multimeter because it shows signal behaviour, not just a numeric reading.

For practical examples, read our related blog: Top 10 Practical Uses for Oscilloscope Multimeters.

Recommended ZOYI Oscilloscope Multimeters

Final Thoughts

Learning to read waveforms unlocks the full power of your oscilloscope multimeter. With waveform analysis, you can diagnose problems that no normal multimeter can detect.

This guide covered the basics of waveform reading, common signal types, key terms, safety tips and real-world diagnostic examples. Once you understand waveform shape, frequency, amplitude and noise, you can troubleshoot electronics, sensors, motors, inverters and power supplies with much more confidence.
