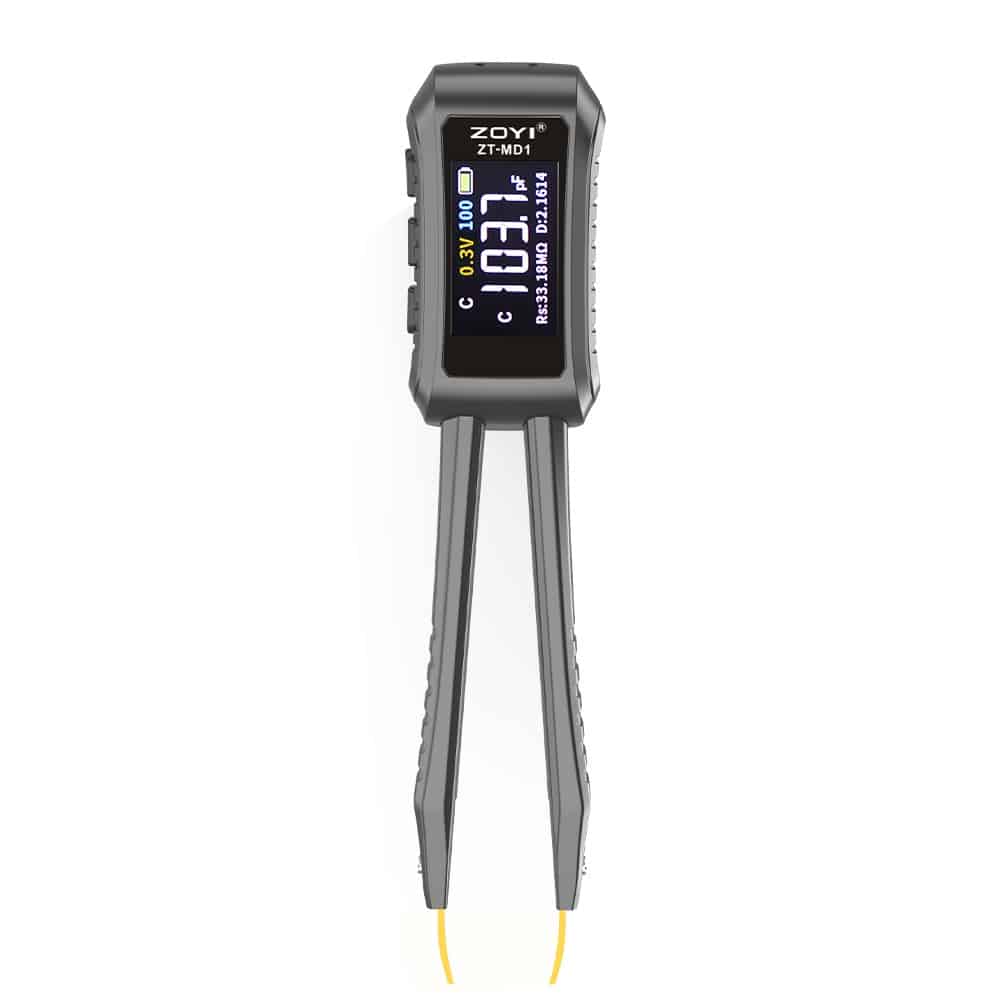

ZOYI ZT-MD1 LCR Tweezers – Smart SMD Component Tester (OLED, USB-C)

Why Choose the ZOYI ZT-MD1 LCR Tweezers?

The ZOYI ZT-MD1 LCR tweezers deliver bench-grade precision in a pocket-sized tool. Designed for engineers and hobbyists who handle surface-mount components, this device automatically identifies and measures resistors, capacitors, and inductors, providing quick, stable readings on a bright OLED display.

Key Features

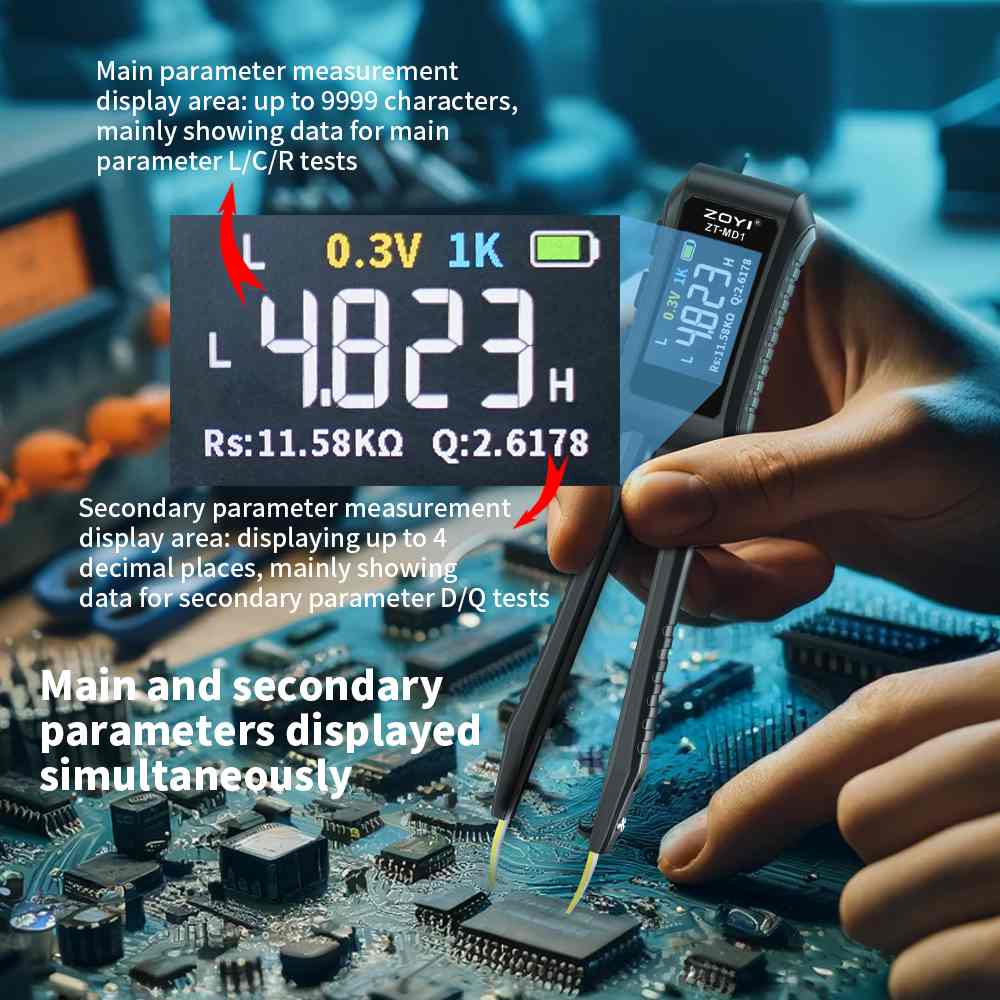

• Auto-identification for L/C/R with sub-parameters D, Q, Rs, plus diode and continuity modes.

• Measurement ranges: R 10 mΩ – 10 MΩ • C 1 pF – 20 mF (with ESR) • L 1 µH – 60 H.

• Selectable test frequencies: 100 Hz / 1 kHz / 10 kHz for accurate results.

• Signal levels: 0.3 V / 0.6 V with true four-wire front-end design for precision.

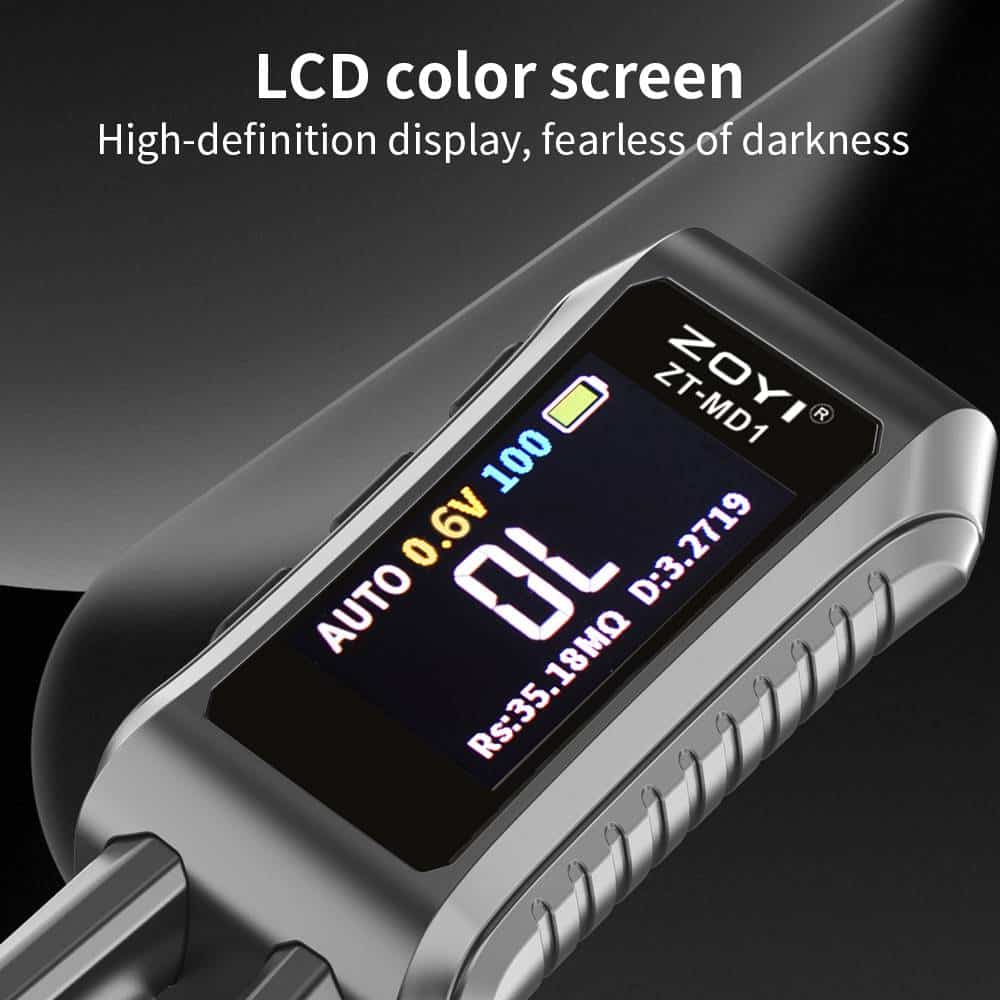

• Clear OLED display for fast data reading even in low-light environments.

• USB-C rechargeable battery (400 mAh Li-ion) – energy-efficient and easy to charge.

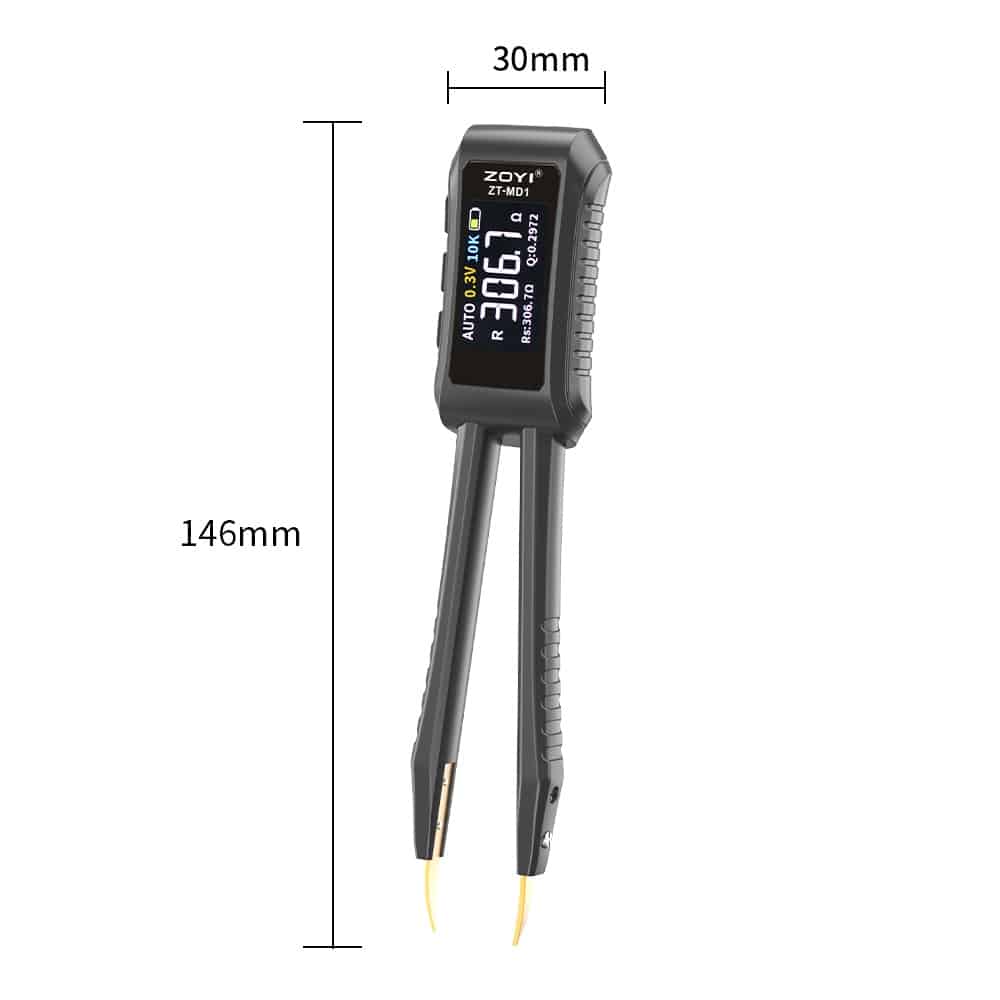

• Compact design: 146 × 30 × 18 mm, lightweight and portable for field testing.

• Firmware-upgradable (V2.0) adding 0.1 V range and advanced Z/X sub-parameters.

Technical Specifications

• Parameters: L, C, R, D, Q, Rs, diode, continuity

• Ranges: 10 mΩ – 10 MΩ • 1 pF – 20 mF • 1 µH – 60 H

• Test Frequencies: 100 Hz / 1 kHz / 10 kHz

• Signal Levels: 0.3 V / 0.6 V

• Display: OLED

• Power: USB-C 5 V/1 A Rechargeable Li-ion Battery (400 mAh)

• Dimensions: 146 × 30 × 18 mm

Ideal For

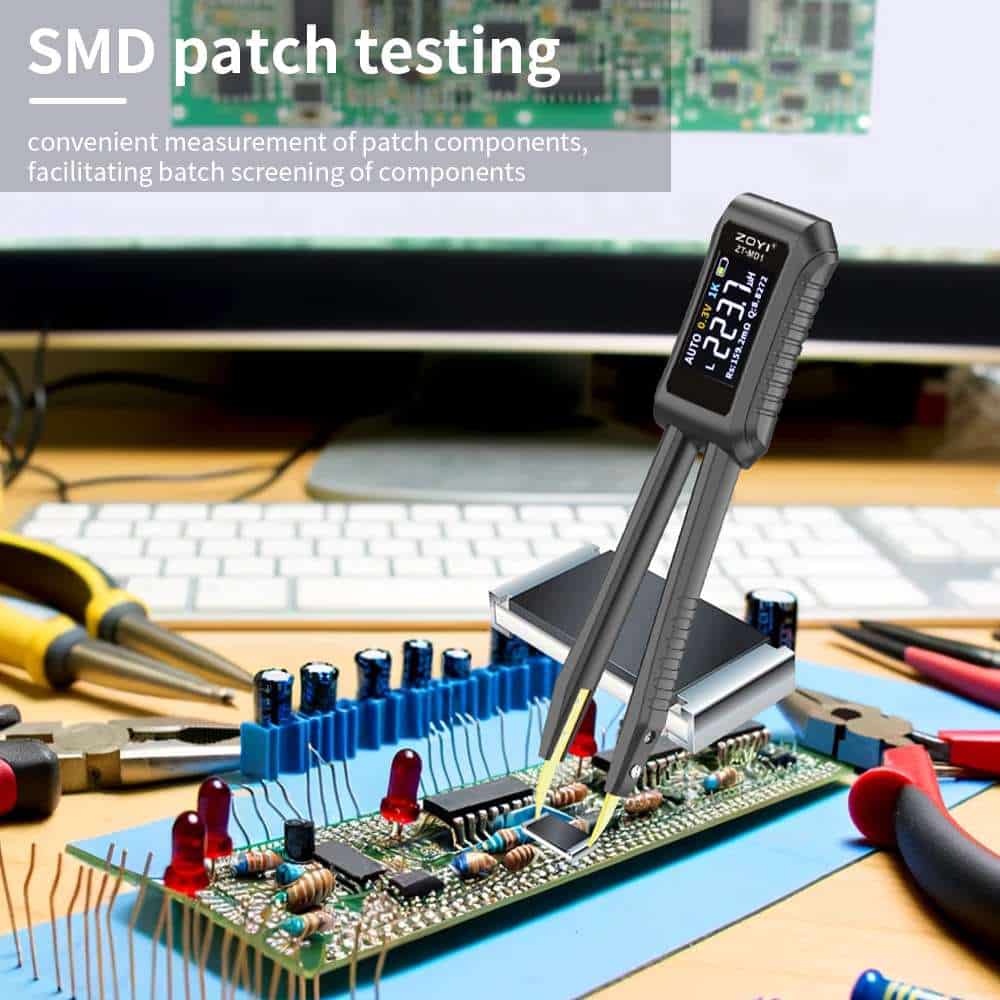

Perfect for verifying SMD components, matching passive parts, checking ESR on capacitors, and performing quick diagnostics on PCBs where bench-top LCR meters are impractical.

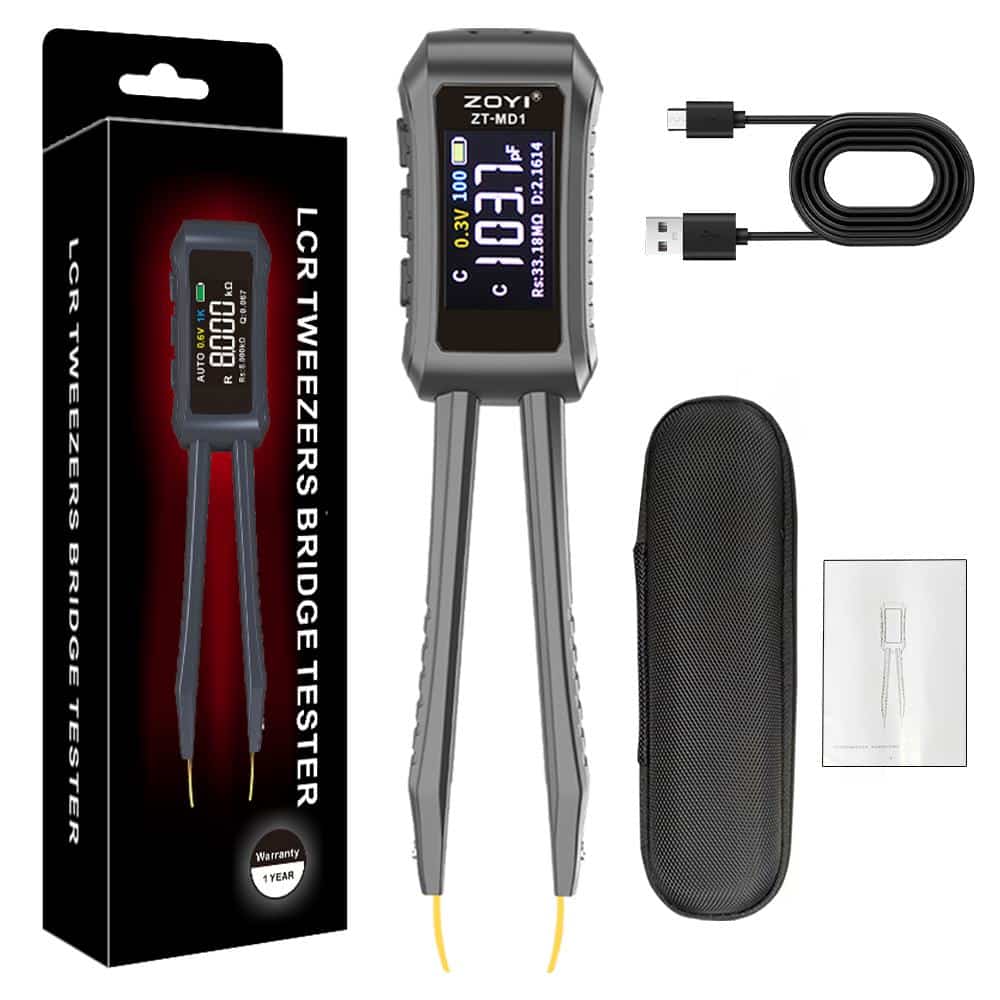

What’s Included

• ZOYI ZT-MD1 LCR tweezers

• USB-C charging cable

• Carry pouch

• User manual

Why Buy from ZOYI UK

All official ZOYI UK products include a 12-month UK warranty and full technical support. Buy direct from ZOYI UK for genuine tools and accessories tested to British standards.
